Explore our range of high-performance tools designed for every job.

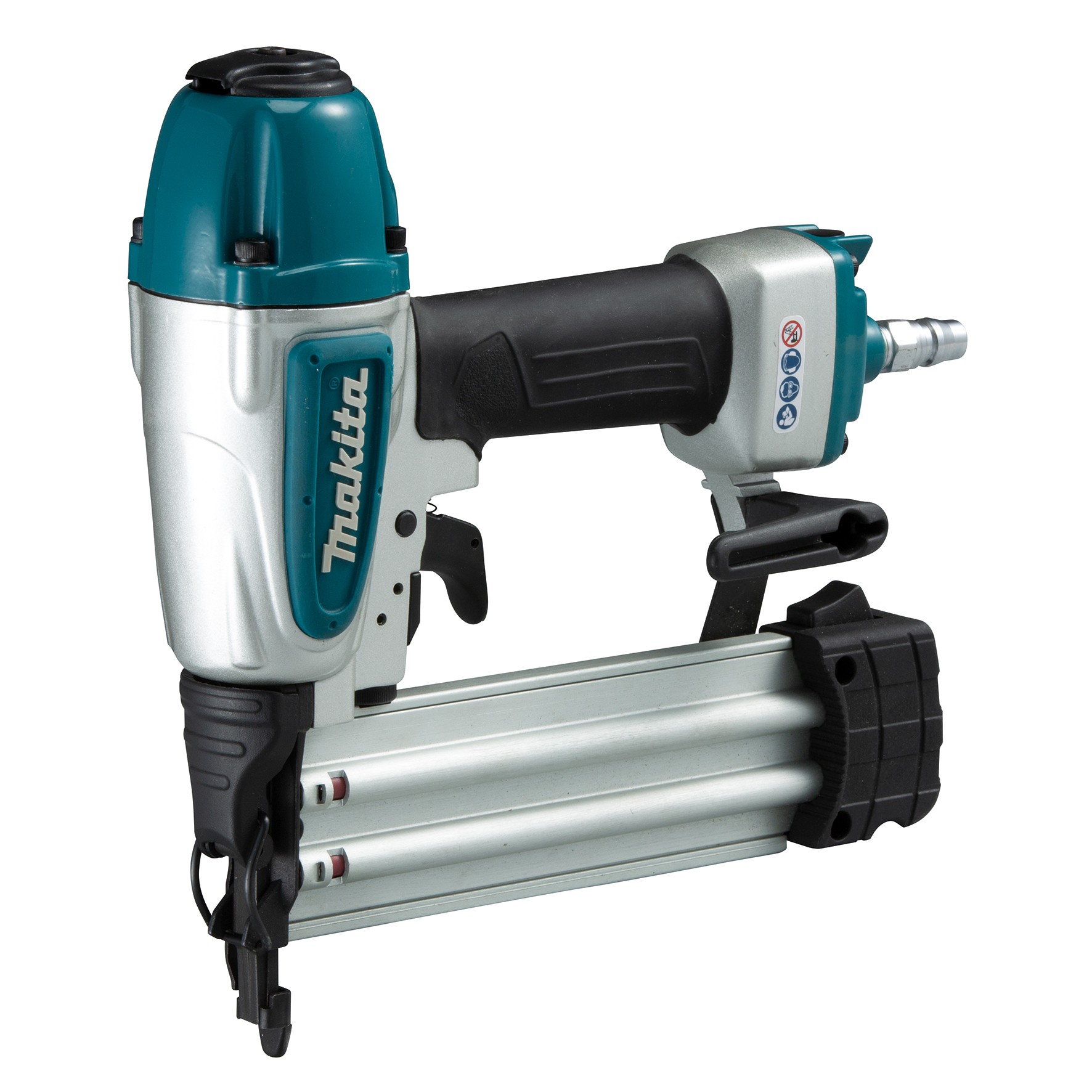

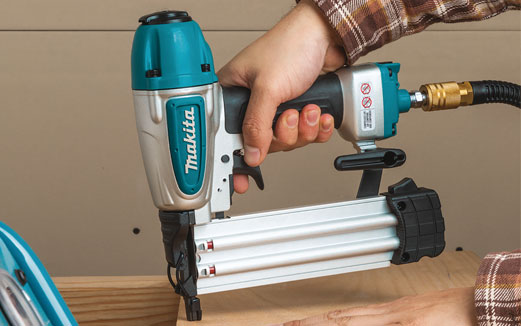

AF506 Brad Nailer

Handy and lightweight brad nailer.

18 Ga 50 mm (2″) Pneumatic Brad Nailer, Air Duster
Lightweight at Only 1.3 kg (2.9 lbs) for Increased Maneuverability
Air duster for sweeping up job site floor as well as workpieces
Compatible with EN ISO11148-13
Slim soft grip provides increased comfort
Drives a range of 18 gauge brad nails, from 15mm (5/8″) to 50mm (2″), into hard or soft wood applications; magazine capacity is up to 100 nails
Quick-release cam-lock opens nail guide assembly to easily clear jammed nails; efficient design minimizes downtime
Easy to use “tool-less” depth adjustment dial for a wide variety of finish applications
Clear window allows operator to see number of remaining staples
Easy-to-see slim nose tip allows quick and easy access to a desired fastening point
Nose adapter for minimizing workpiece surface from being scratched or damaged
Non-marring rubber nose and bumpers protect the wood’s surface from being scratched or damaged
Tool hook is convenient for hanging the tool temporarily
Depth Adjusting and Carry Case

Capacity	Length: 15 – 50 mm (5/8 – 2″) Gauge: 18 Ga
Operating pressure	0.49 – 0.83 MPa (70 – 120 PSI)
Magazine capacity	100
Compressed air	Driver stroke: 85.5 mm (3-3/8″) Cylinder bore diameter: 28 mm (1-1/8″)
Dimensions (L x W x H)	250 x 70 x 256 mm (9-7/8 x 2-3/4 x 10-1/8″)
Net weight	1.3 kg (2.9 lbs.)

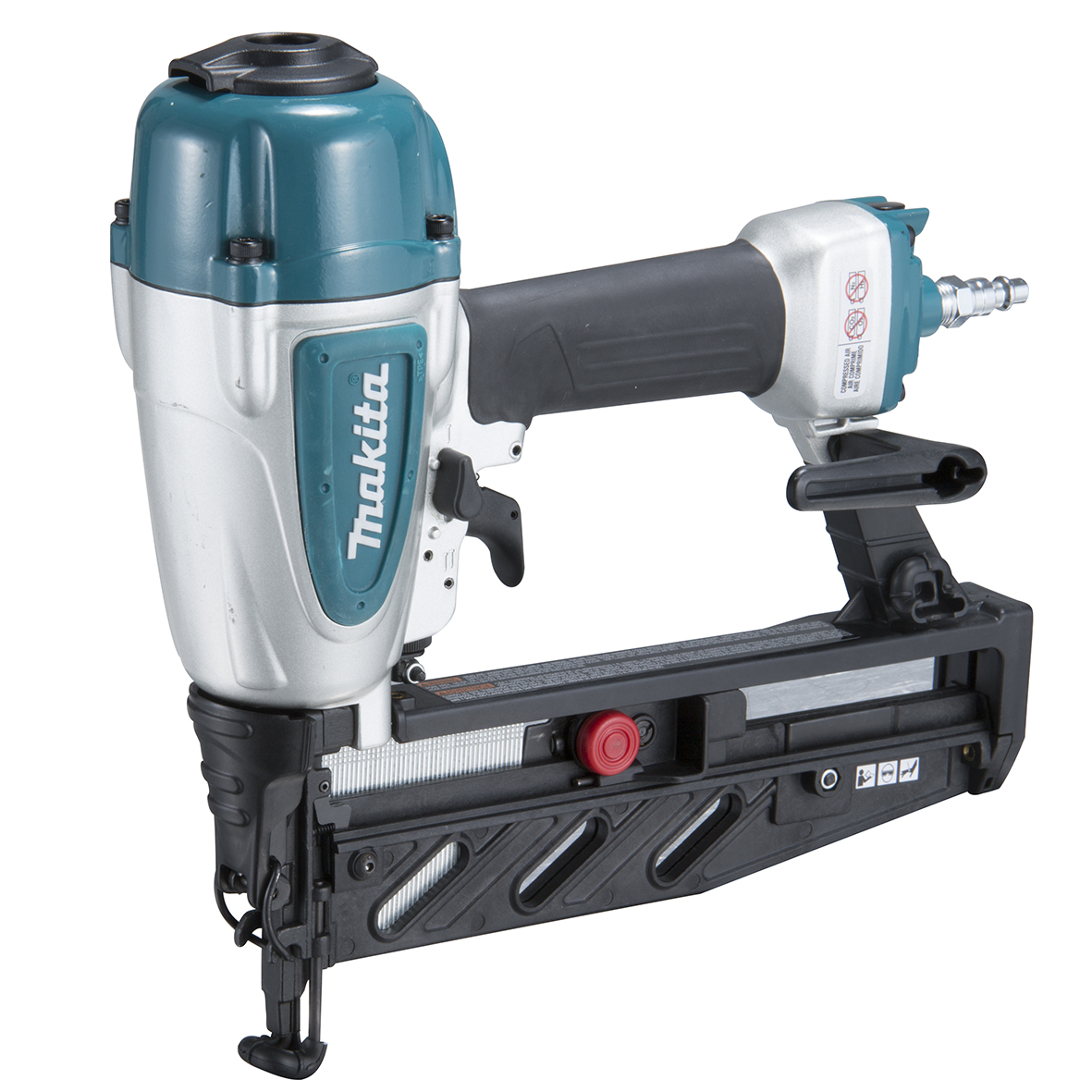

16 Gauge lightweight finish nailer.
