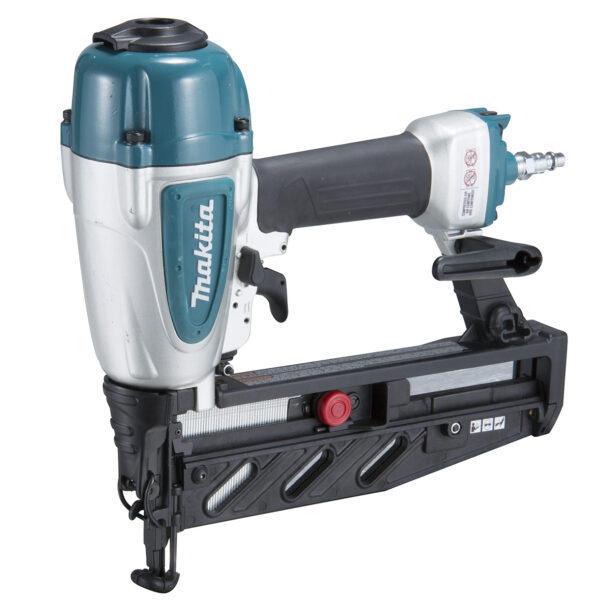

AF601 Brad Nailer

Download HR Image

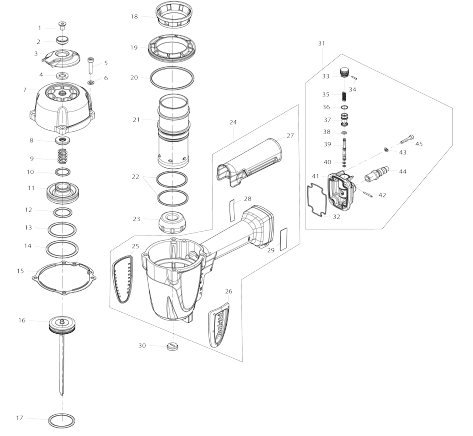

Download Exploded View

PRODUCT DETAIL

16 Gauge lightweight finish nailer.

  • 16 GA 64 mm (2-1/2″) Pneumatic Finish Nailer, Air Duster
  • Conveniently located push button type air duster for continuous operation
  • Anti-dry fire mechanism minimizes workpiece from damage
  • Protective bumpers protect workpiece and body from scratches/damage
  • High power of max air pressure 0.83 MPa (120 PSI) provides secure fastening of flooring point
  • Toolless driving depth adjustment simply by turning a dial
  • Large fastener capacity of 100 nails for fewer reloads and less downtime
  • Ergonomically designed rubber grip with anti-slipping rib provides more comfort and better control
  • Drives 16 GA nails from 25-64 mm (1″-2-1/2″) length
  • Operable in either way of “bump fire mode (contact actuation mode)” or “(single) sequential actuation mode”
  • Bump fire mode (contact actuation mode) drives staples repetitively for quick operation
  • (Single) sequential actuation mode drives one staple by one sequential operation
  • Toolless nail jam clearing
  • Easy-to-see slim nose tip allows quick and easy access to a desired fastening point
  • Nose adapter for minimizing workpiece surface from being scratched or damaged
  • Remaining nail view window
  • Lightweight for reduced operator fatigue
  • Hook convenient for temporary tool hanging
  • Depth Adjusting, Sequential or Bump-fire, Auto Firing Stop and Carry Case
Capacity Length: 25 – 64 mm (1 – 2-1/2″)
Gauge: 16 Ga
Operating pressure 0.49 – 0.83 MPa (70 – 120 PSI)
Magazine capacity 100
Dimensions (L x W x H) 304 x 95 x 297 mm (12 x 3-3/4 x 11-3/4″)
Net weight 1.7 kg (3.8 lbs.)
