• Max 1,900 RPM, 28,500 IPM & 60 N·m (530 in.lbs) for Increased Efficiency
• Compact design for reduced operator fatigue
• Dual LED lights with pre-glow and afterglow functions illuminate the work area
• Ergonomically designed grip for comfortable handling
• Variable 2-speed (0-500 & 0-1,900 RPM) for a wide range of drilling, fastening and hammer drilling applications

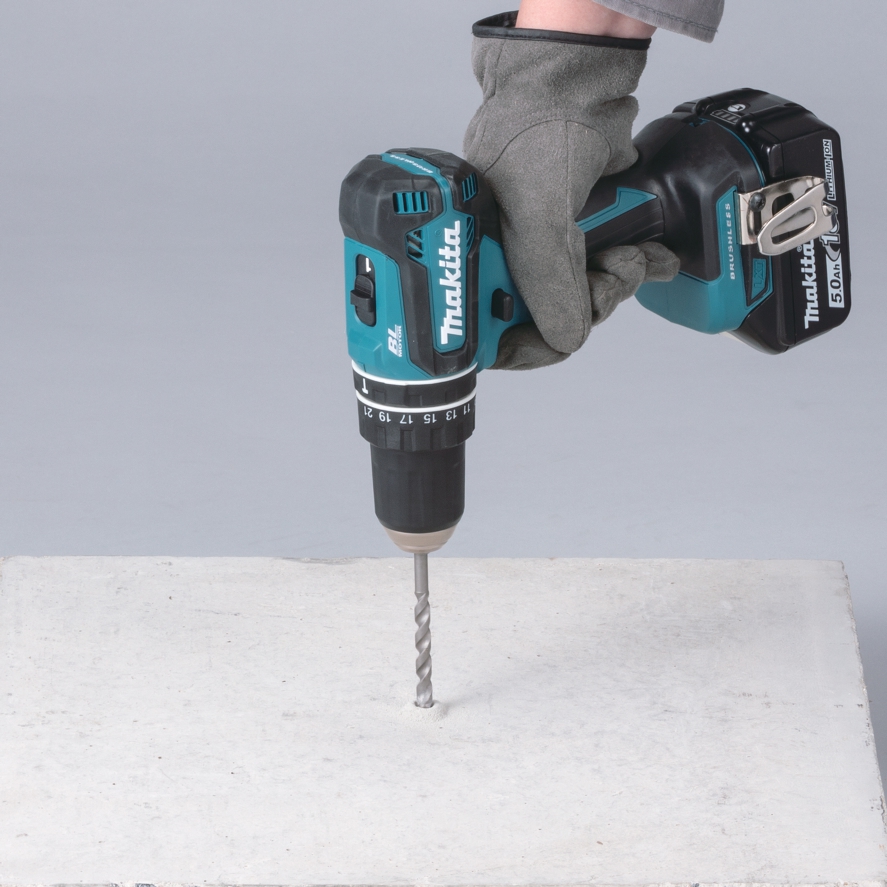

• 0-28,500 IPM for fast hammer drilling in masonry materials
• BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
• BL motor is electronically controlled to optimize battery energy use for longer run time per charge
• BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
• BL motor delivers 60 N·m (530 in.lbs) of max torque
• All metal gear construction
• Soft grip provides increased comfort on the job
• Convenient 13 mm (1/2″) keyless chuck for quick bit changes
• 21 adjustable torque settings plus drill mode
• Reverse switch is conveniently located
• Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
• Water-resistance compatible with XPT
• Battery protection circuit protects against overloading, over-discharging and over-heating
• Durable, reversible belt clip convenient for temporary tool hanging
Buy From Retailer
| No Load Speed | High: 0 – 1,900 min⁻¹ Low: 0 – 500 min⁻¹ |
| Impacts per Minute | High: 0 – 28,500 min⁻¹ Low: 0 – 7,500 min⁻¹ |
| Capacity | Masonry: 13 mm (1/2″) Steel: 13 mm (1/2″) Wood: 38 mm (1-1/2″) Wood (Self-feed bit): 38 mm (1-1/2″) Hole saw: 51 mm (2″) Wood (Drill bit): 38 mm (1-1/2″) Flat bit: 40 mm (1-9/16″) Single spur auger bit: 38 mm (1-1/2″) Ship auger: 38 mm (1-1/2″) Formwork: 30 mm (1-3/16″) Forstner drill bit: 35 mm (1-3/8″) Multi-siding core bit: 70 mm (2-3/4″) |
| Max Torque | 60 N·m (530 in.lbs) |
| Max Fastening Torque | Hard: 50 N·m (440 in.lbs.) Soft: 27 N·m (240 in.lbs.) |
| Chuck Capacity | 13 mm (1/2″) |
| Clutch Torque Setting | 1.0 – 5.0 N·m (9 – 44 in.lbs.) |
| Max Output | 350 W |
| Vibration Level | Impact drilling into concrete: 8.0 m/s² Drilling into metal: 2.5 m/s² or less |
| Vibration K Factor | Impact drilling into concrete: 1.5 m/s² Drilling into metal: 1.5 m/s² |
| Sound Pressure Level | 82 dB(A) |
| Sound Power Level | 93 dB(A) |
| Noise K Factor | 3 dB(A) |
| Dimensions (L x W x H) | 182 x 79 x 237 mm (7-1/8 x 3-1/8 x 9-3/8″) |
| Net Weight | 1.5 – 1.8 kg (3.3 – 4.0 lbs.) (Battery dependent) |
