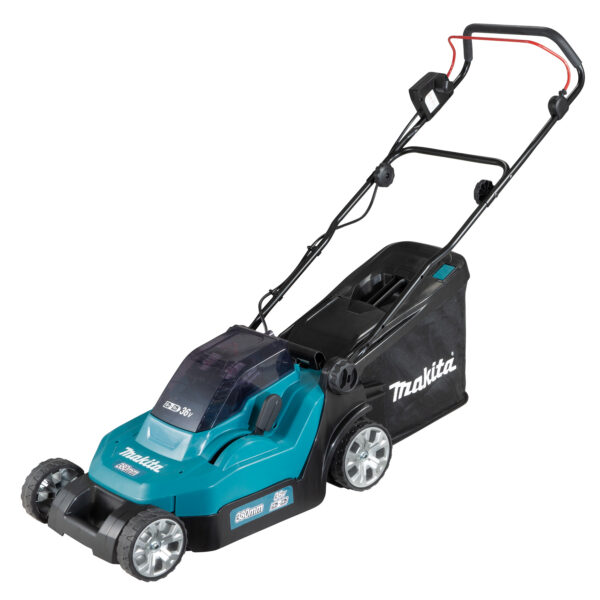

DLM382DZ Lawn Mower

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • Large 40 L capacity grass box with grass level indicator
  • Foldable for easy storage when not in use
  • Battery capacity warning lamp
  • Double sided cutting blade
  • Rubberized soft grip handle bar
  • Single lever cutting height adjustment with 13 positions
  • Soft start feature gradually increases speed
  • Electric brake for operator safety
  • Low noise level,  zero emissions and reduced maintenance
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • XPT (eXtreme Protection Technology) dust and drip-proof
Max output 900 W
Cutting width 380 mm
Approx. mowing area on a full battery charge w/ BL1860B x2: 560 m²
Approx. continuous run time on full battery charge w/ BL1860B x2: 35 min.
No load speed 3,700 minˉ¹
Grass catcher capacity 40 L
Cutting height adjustment Adjustment range: 20 – 75 mm
Stage: 13
Wheel diameter (Front / Rear) 140 / 160 mm
Vibration level 2.5 m/s² or less
Vibration K factor 2 m/s²
Sound pressure level 81 dB(A)
Sound power level 91 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) During operation: 1,380 – 1,410 × 450 × 985 – 1,005 mm
When stored (w/o Grass box): 860 × 450 × 475 mm
