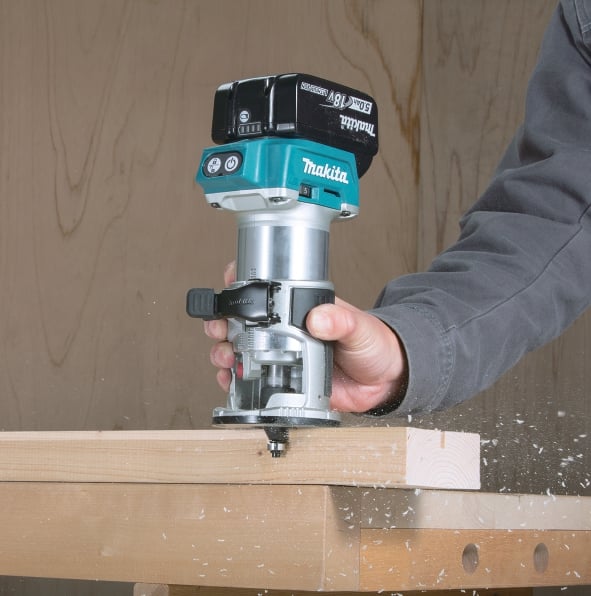

DRT50ZJ Cordless Trimmer

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • BL motor delivers the power and performance for corded demands
  • Aluminium base for higher durability and accuracy
  • Plastic cover plate protects workpiece from scratches
  • BL motor delivers 30,000 RPM for fast trimming
  • BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
  • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
  • Conveniently located variable speed control dial (10,000 – 30,000 RPM) enables user to match the speed to the application while holding the body
  • Dual LED job lights illuminate cutting edge and increase visibility
  • Smooth rack-and-pinion fine depth adjustment system for more precise settings
  • Slim and ergonomically designed body for increased comfort
  • Quick release cam lock system for convenient depth adjustments and base removal/installation
  • Constant speed control maintains constant speed under load
  • Soft start function minimizes start-up shock and makes the tool start smoothly.
  • Battery protection circuit protects against overloading, over-discharging and over-heating
No load speed 10,000 – 30,000 minˉ¹
Collet size 6/ N/A/ 8/ N/A mm (N/A/ 1/4/ N/A/ 3/8″)
Base material Aluminum
Shaft lock Yes
Vibration level EN62841-2-17, rotation without load: 2.5 m/s² or less
Uncertainty (K) for Vibration EN62841-2-17, rotation without load: 1.5 m/s²
Sound pressure level EN62841-2-17, rotation without load: 81 dB(A)
Sound power level EN62841-2-17, rotation without load: 89 dB(A)
Uncertainty (K) for Noise EN62841-2-17, rotation without load: 3 dB(A)
Base inner 30 mm (1-3/16″)
Plunge capacity w/ Trimmer base: 0 – 40 mm (0 – 1-9/16″)
w/ Plunge base: 0 – 35 mm (0 – 1-3/8″)
Dimensions (L x W x H) w/ BL1830B / BL1850B / BL1860B: 134 x 89 x 226 mm (5-1/4 x 3-1/2 x 8-7/8″)
Net weight 1.8 – 2.1 kg (3.9 – 4.6 lbs.) – Battery dependent
