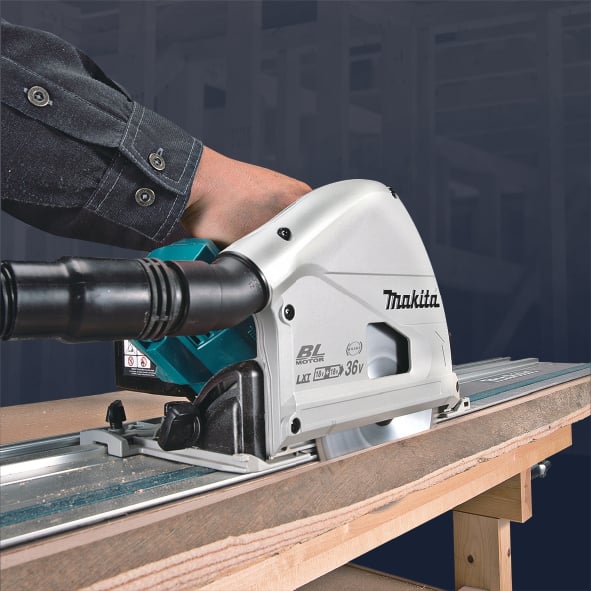

DSP600ZJ Cordless Plunge Saw

Download HR Image

Download Exploded View

PRODUCT DETAIL

• Motor delivers 6,300 RPM for fast cutting and ripping
• BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
• BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
• Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
• Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° – 48°) with a positive stop at 22.5°
• Precision accurate cutting delivers a splinter-free mirror finish
• Depth stopper for splinter-free cutting enables to easily cut a preliminary groove at a depth of 2 mm
• Variable speed dial control (2,500 – 6,300 RPM) for optimum performance in a variety of materials
• Electronic soft start feature for smooth start-ups
• Easy to set depth adjustment with large scale
• Magnesium components deliver a well balanced and lightweight saw
• Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
• Electric brake for improved productivity and increased operator safety
• Rubberized handles for added comfort
• Onboard hex wrench for fast and easy blade changes
• Battery protection circuit protects against overloading, over-discharging and over-heating

Wheel diameter 165 mm (6-1/2″)
Hole diameter 20 mm (13/16″)
Blade body thickness 1.0 mm
No load speed 2,500 – 6,300 min⁻¹
Bevel capacity -1 – 48°
Max cutting capacity 0°: 56 mm (2-3/16″) 45°: 40 mm (1-9/16″)
48°: 38 mm (1-1/2″)
Sound pressure level 92 dB(A)
Sound power level 103 dB(A)
Noise K factor 3 dB(A)
Vibration level Cutting wood: 2.5 m/s² or less Cutting metal: 2.5 m/s² or less
Vibration K factor Cutting wood: 1.5 m/s² Cutting metal: 1.5 m/s²
Dimensions (L x W x H) 346 x 241 x 272 mm (13-5/8 x 9-1/2 x 10-3/4″)
Net weight 4.4 – 5.1 kg (9.8 – 11.2 lbs.) Batteries dependent
