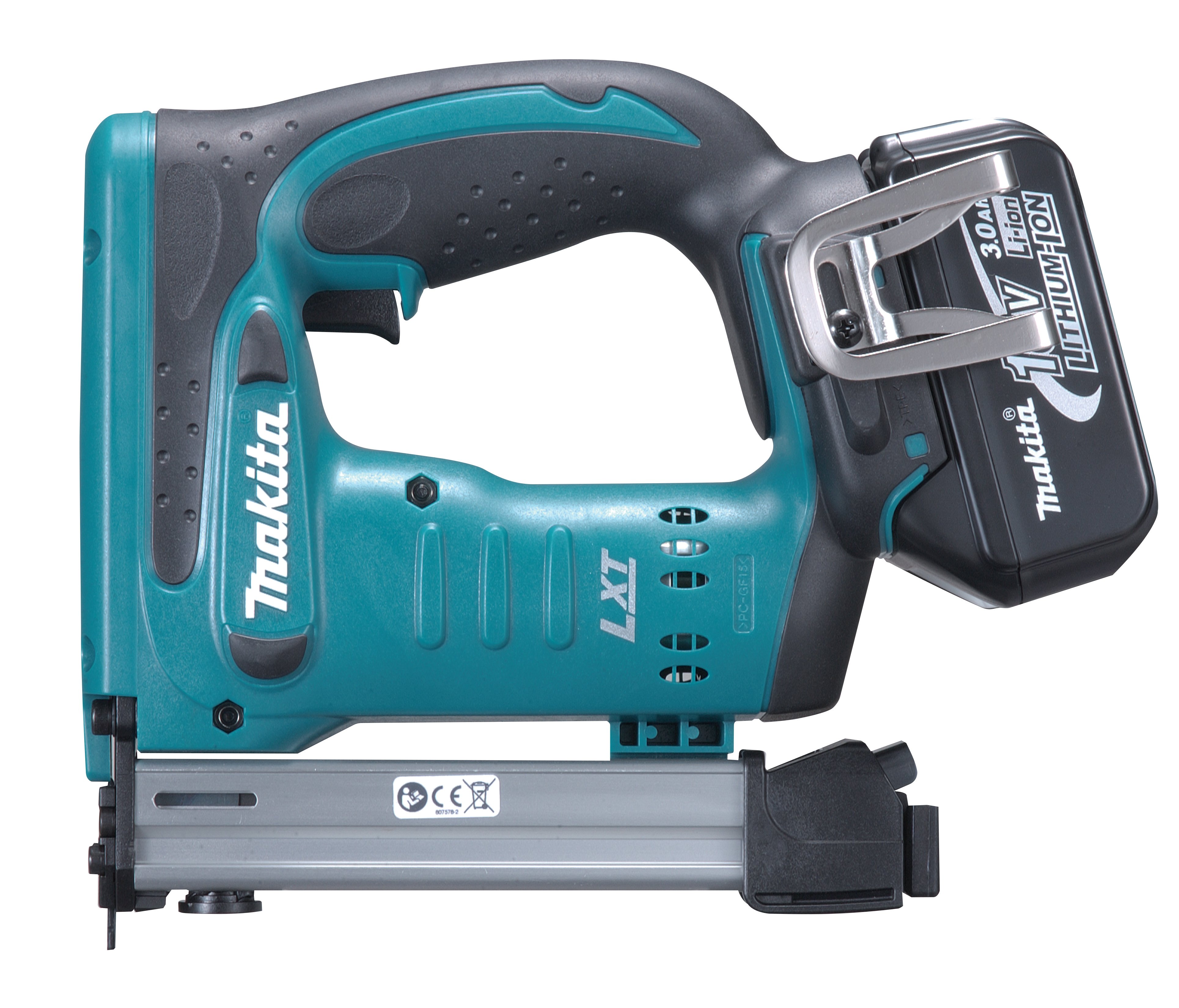

DST221Z Cordless Stapler

Download HR Image

Download Exploded View

PRODUCT DETAIL

• Aluminium base for higher durability and accuracy
• Plastic cover plate protects workpiece from scratches
• 4 Different base assemblies for added versatility
• BL motor delivers 30,000 RPM for fast trimming
• BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
• BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
• Conveniently located variable speed control dial (10,000 – 30,000 RPM) enables user to match the speed to the application while holding the body
• Dual LED job lights illuminate cutting edge and increase visibility
• Smooth rack-and-pinion fine depth adjustment system for more precise settings
• Slim and ergonomically designed body for increased comfort
• Quick release cam lock system for convenient depth adjustments and base removal/installation
• Constant speed control maintains constant speed under load
• Soft start function minimizes start-up shock and makes the tool start smoothly
• Battery protection circuit protects against overloading, over-discharging and over-heating
• Variable Speed, Constant Speed, Soft Start, Dust Collection, Built-In Job Light and Carry Case





Staple Width: 10 mm (3/8″)
Gauge: 0.6 x 1.2 mm (1/32 x 1/16″)
Length: 10, 13, 16, 19, 22 mm (3/8, 1/2, 5/8, 3/4, 7/8″)
Magazine capacity 98
Vibration level 3.5 m/s²
Vibration K factor 1.5 m/s²
Sound pressure level 82 dB(A)
Sound power level 93 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 251 x 91 x 212 mm (9-7/8 x 3-5/8 x 8-3/8″)
Net weight 2.1 – 2.4 kg (4.7 – 5.3 lbs.) Battery dependent
