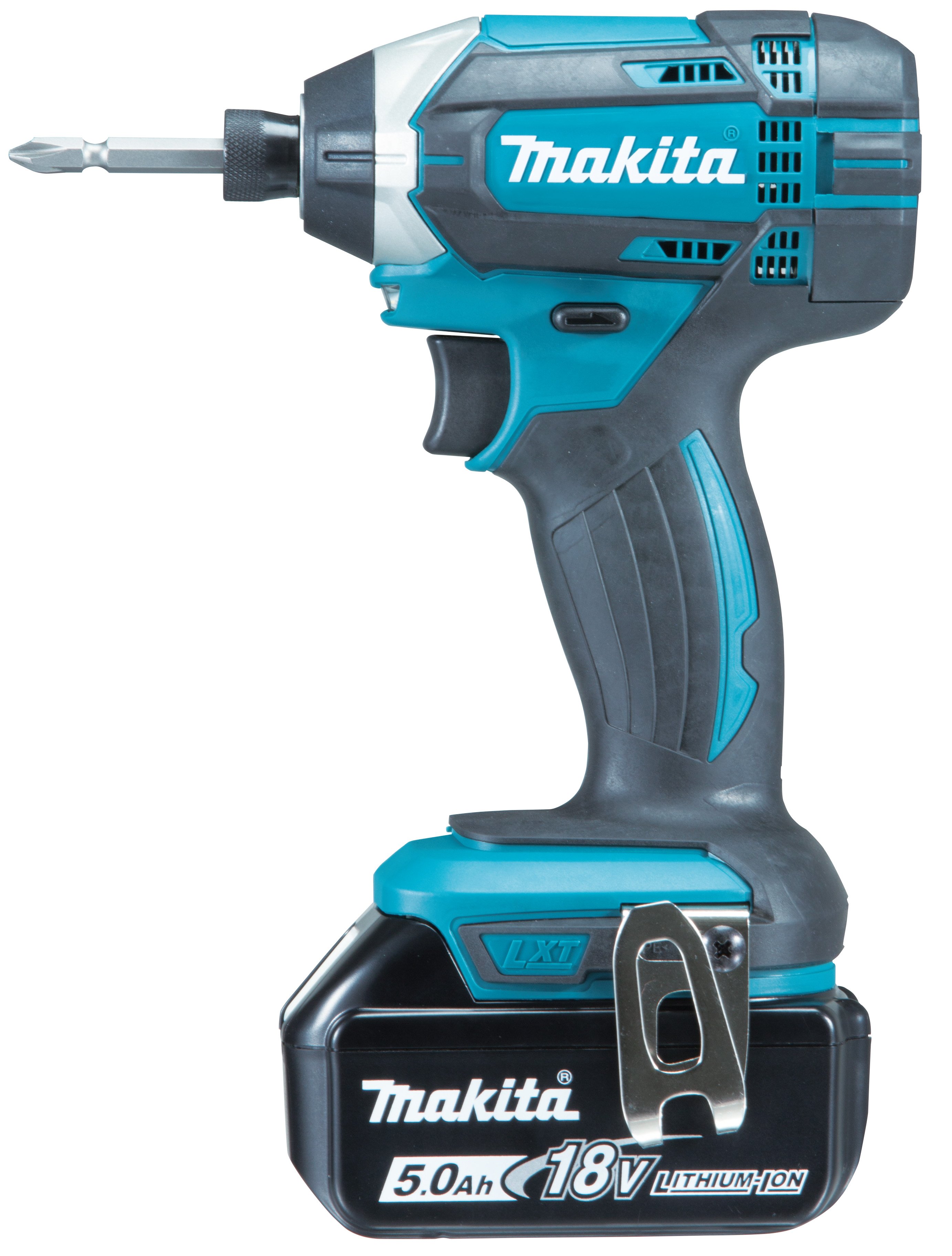

DTD152Z Cordless Impact Driver

Download HR Image

Download Exploded View

PRODUCT DETAIL

• Developed for applications such as tightening of self-drilling screws and lighter duty machine screws
• Delivers 2,900 max RPM and 165 N·m (1,460 in.lbs.) of max torque
• Compact and lightweight design
• Dual LED lights with pre-glow and afterglow functions
• Water-resistance compatible with XPT
• Variable speed (0-2,900 RPM & 0-3,500 IPM) for a wide range of fastening applications
• Battery protection circuit protects against overloading, over-discharging and over-heating
• Reverse switch is conveniently located
• Phosphorescent bumper glows in dark places
• Electric brake for maximum productivity and increased operator safety
• Durable, reversible belt clip convenient for temporary tool hanging





Carbon Brush 448
Capacity Machine screw: M4 – M8 (5/32 – 5/16″)
High strength bolt: M5 – M12 (3/16 – 1/2″)
Steel: 22 mm (7/8″)
Standard bolt: M5 – M16 (3/16 – 5/8″)
Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″)
Wood (Auger bit): 24 mm (15/16″)
Hole saw diameter 38 mm (1-1/2″)
Hex shank 6.35 mm (1/4″)
Shank / Drive Hex Shank 6.35 mm (1/4″)
Max fastening torque 165 N·m (1,460 in.lbs.)
No load speed 0 – 2,900 minˉ¹
Impacts per minute 0 – 3,500 minˉ¹
Vibration level Impact tightening of fasteners of the maximum capacity of the tool: 10.5 m/s²
Vibration K factor Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
Sound pressure level 93 dB(A)
Sound power level 104 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 137 x 79 x 238 mm (5-3/8 x 3-1/8 x 9-3/8″)
Net weight 1.3 – 1.6 kg (2.8 – 3.5 lbs.) Battery dependent
