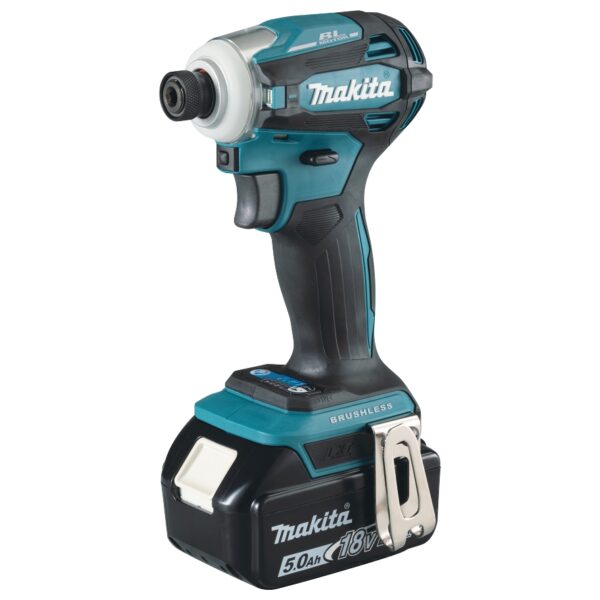

• Slim compact tool body
• Light mode enables to use DTD172 as a handy light on dark job sites
• One-touch bit installation
• Twin LED lights on both sides illuminate the work area for increased visibility
• Wood/Bolt/T-Mode/Max/Hard/Medium/Soft mode for multiple applications
• Mode selection switch for one-handed mode selection
• Power selection switch provides the user with precise fastening control for a wide range of applications
• BL motor delivers 3,600 max RPM and 180 N·m of max torque
• BL motor is electronically controlled to optimize battery energy use for longer run time per charge
• BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
• BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
• Lightweight for reduced operator fatigue
• Soft grip provides increased comfort on the job
• Water-resistance compatible with XPT
Electric brake for maximum productivity
Easy-to-operate, push button type F/R change switch
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating.
Buy From Retailer
| Capacity | Machine screw: M4 – M8 (5/32 – 5/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Steel: 22 mm (7/8″) Wood (Self-feed bit): N/A mm (N/A”) |
Standard bolt: M5 – M16 (3/16 – 5/8″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Wood (Auger bit): 24 mm (15/16″) |
|---|---|---|
| Masonry drill diameter | N/A mm (N/A”) | |
| Hole saw diameter | 38 mm (1-1/2″) | |
| Shank / Drive | Hex Shank 6.35 mm (1/4″) | |
| Max fastening torque | 180 N·m (1,590 in.lbs.) | |
| Fastening torque | Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.) | |
| No load speed | Max / Hard / Med. / Soft / Wood / Bolt / T (1) / T (2) mode: 0 – 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600 minˉ¹ |
|
| Impacts per minute | Max / Hard / Med. / Soft / Wood / Bolt / T (1) / T (2) mode: 0 – 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / N/A / 2,600 minˉ¹ |
|
| Max output | 290 W | |
| Vibration level | Impact tightening of fasteners of the maximum capacity of the tool: 13.5 m/s² | |
| Vibration K factor | Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s² | |
| Sound pressure level | 97 dB(A) | |
| Sound power level | 108 dB(A) | |
| Noise K factor | 3 dB(A) | |
| Dimensions (L × W × H) | w/ BL1830B / BL1850B / BL1860B: 114 x 81 x 236 mm (4-1/2 x 3-3/16 x 9-1/4″) | |
| Net weight | 1.2 – 1.5 kg (2.6 – 3.3 lbs.) | Battery dependent |
