DTR180Z Rebar Tying Tool

DTR180Z Rebar Tying Tool
DTR180Z Rebar Tying Tool - Image 2

Download HR Image

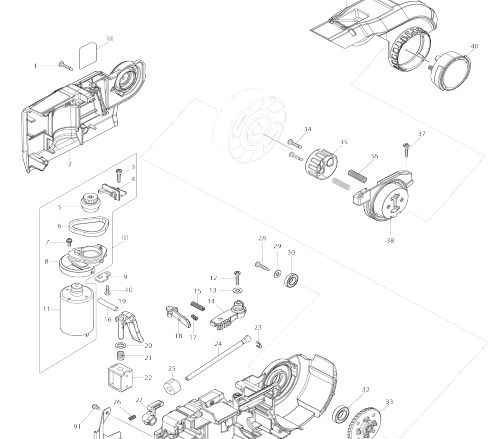

Download Exploded View

PRODUCT DETAILS

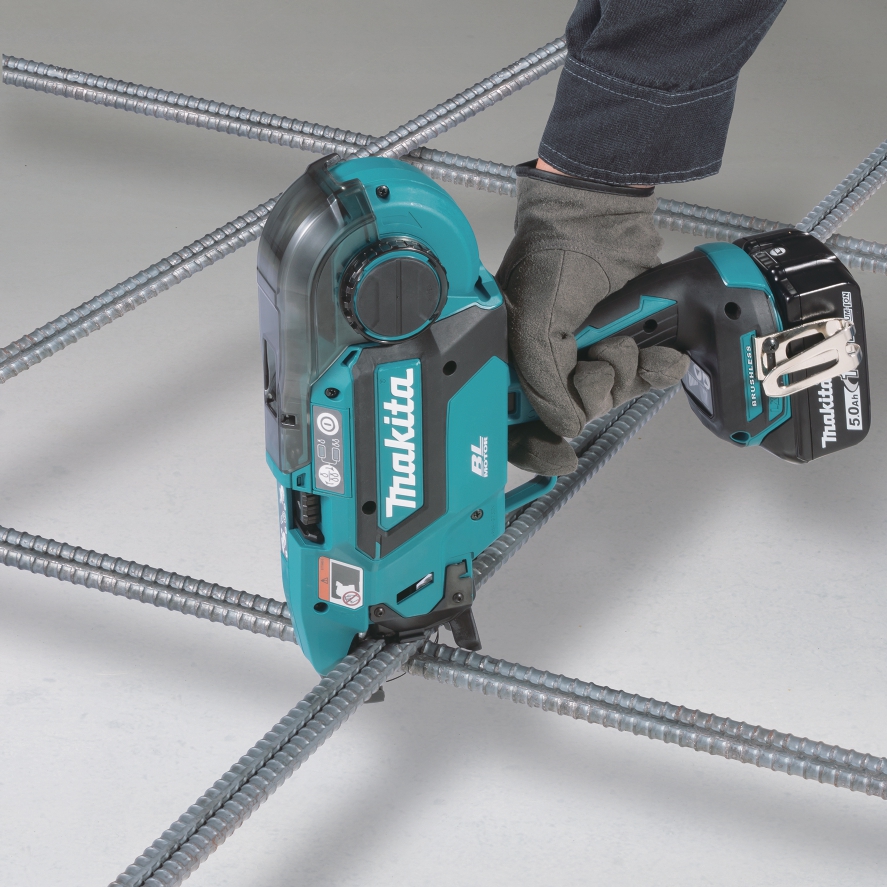

  • Tying rebar can be done automatically in a various range of applications such as building concrete foundations
  • Operable by only one hand, allowing the other hand to be free to adjust the position of rebar
  • Continuous actuation mode for efficient continuous tying
  • Users can tie rebar by only pulling contact arm against rebars if they continuously hold the trigger
  • Users can also tie rebar by pulling the trigger as single actuation mode
  • According to the condition of tying material, tying strength can be adjusted in 6 stages
  • Compatible with18V LXT batteries
  • Water-resistance compatible with XPT
  • BL motor with high power to weight and size ratio
  • BL motor generates less heat buildup and is ideal for prolonged use in high production applications
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • φ0.8 mm Annealed tie wire dedicated for DTR180
  • Tie wire reel can be replaced simply by opening Reel cover
  • On-tool storage of hex wrench: Hex wrench is supplied for maintenance of tie wire path
  • Main switch with auto power-off: Operation starts by pulling trigger after main switch is turned on
  • Ergonomically designed handle with sure grip provides increased comfort on the job

Buy From An Authorized Retailer

Buy From Retailer

Max output 340 W
Tie wire Dia. 0.8 mm
Applicable rebars D10 x D10 – (D13 x 2) x (D13 x 2)
Wire tail height 21 mm (13/16″)
Twisting direction Counterclockwise
Easy loading mechanism for tying wire Yes
Nose width 14.0 mm (9/16″)
Vibration tying function Yes
Trigger lock Yes
Belt hook Yes
Vibration level 2.5 m/s² or less
Vibration K factor 1.5 m/s²
Sound pressure level 78 dB(A)
Noise K factor 3 dB(A)
Dimensions (L x W x H) w/ BL1830B / BL1850B / BL1860B: 304 x 93 x 318 mm (12 x 3-2/3 x 12-1/2″)
Net weight 2.3 – 2.6 kg (5.1 – 5.7 lbs.) – Battery dependent
