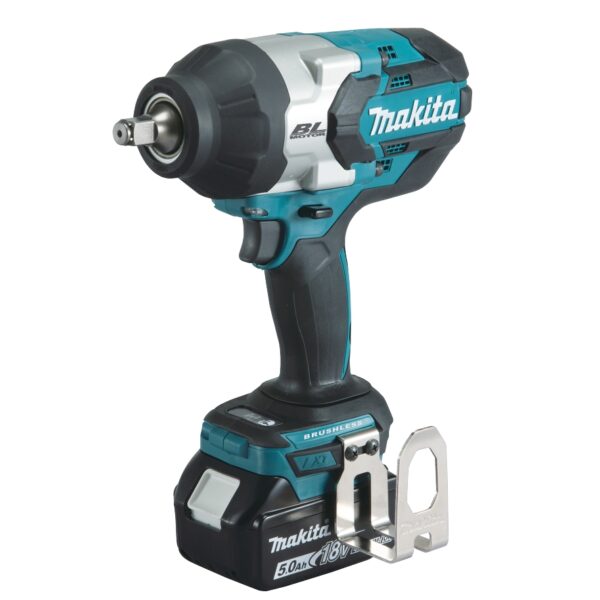

DTW1002ZJ Cordless Impact Wrench

Download HR Image

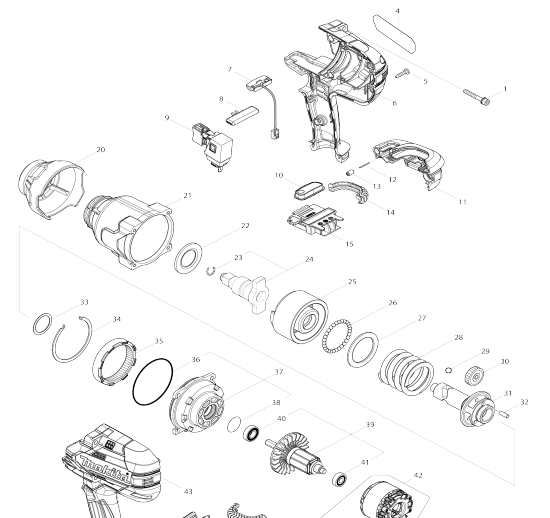

Download Exploded View

PRODUCT DETAIL

• Makita’s Most POWERFUL LXT 1,200 N·m (890 ft.lbs.) 1/2″ Impact Wrench / Compact and Lightweight design thanks to BL motor
• Electronic 3 stage impact power selection reduces fault tightening
• Hammer case securely fastened with four bolts
• Twin LED job light with pre-glow and afterglow functions
• Efficient impact system (Max 2,200 IPM) with less vibration
• Easy-to-operate, push button type F/R change switch
• Ergonomic handle perfectly fits your hand
• Electric brake stops the rotation gently but fast, allowing user to quickly resume operation
• Variable speed control by trigger
• Hook for operator convenience
• Brushless motor





Shank / Drive Square Drive 12.7 mm (1/2″)
Square drive 12.7 mm (1/2″)
Max fastening torque 1,200 N·m (885 ft.lbs.)
Fastening capacities Standard bolt: M12 – M30 (1/2 – 1-1/4″) High strength bolt: M10 – M24 (3/8 – 1″)
Nut-busting torque 1,600 N·m (1,180 ft.lbs.)
Battery cushioning mechanism Yes
Vibration level Impact tightening of fasteners of the maximum capacity of the tool: 18 m/s²
Vibration K factor Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
Sound pressure level 100 dB(A)
Sound power level 108 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 229 x 91 x 289 mm (9 x 3-5/8 x 11-3/8″)
Net weight 3.6 kg (7.9 lbs.)
