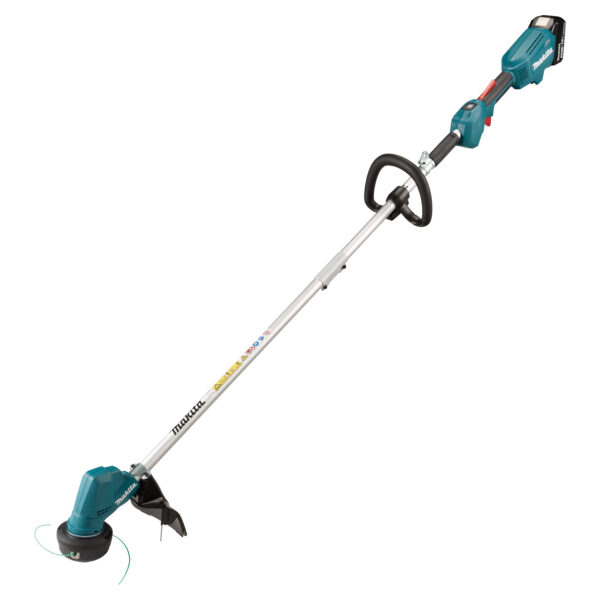

DUR192L Grass Trimmer

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • Soft grip ergonomic design
  • Constant speed control
  • Variable 2-speed options (Low: 0-4,500 RPM, High: 0-6,000 RPM)
  • Water-resistance compatible with XPT
  • Electric brake for maximum safety
  • Soft start feature
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • On-tool hex wrench
  • Low noise level suitable for use in residential areas and public spaces
  • Zero emissions and less maintenance than conventional petrol machines
Max output 460 W
No load speed High / Low: 0 – 6,000 / 0 – 4,500 min⁻¹
Cutting width Nylon cutting head: 300 mm
Spindle size M10 × 1.25 LH
Max run time High / Low, with 300 mm (11-3/4″) nylon cutting head, with Load, with BL1850B: 18 / 34 min
High / Low, with 300 mm (11-3/4″) nylon cutting head, without Load, with BL1850B: 46 / 97 min
High / Low, with 330 mm (13″) nylon cutting head, with Load, with BL1850B: 11 / 16 min
High / Low, with 330 mm (13″) nylon cutting head, without Load, with BL1850B: 33 / 70 min
Vibration level Front / Rear: 2.5 / 2.5 m/s² or less
Vibration K factor Front / Rear: 1.5 / 1.5 m/s²
Sound pressure level Nylon cutting head: 74.8 dB(A)
Noise K factor Nylon cutting head: 0.4, 1.9 dB(A)
Sound power level Nylon cutting head: 87.8 dB(A)
Dimensions (L × W × H) Without nylon cutting head, without battery: 1,623 × 186 × 246 mm
Without nylon cutting head, with BL1815N / BL1820B: 1,655 × 186 × 246 mm
Without nylon cutting head, with BL1830B / BL1850B / BL1860B: 1,670 × 186 × 246 mm
With nylon cutting head, without battery: 1,658 × 186 × 246 mm
With nylon cutting head, with BL1830B / BL1850B / BL1860B: 1,705 × 186 × 246 mm
Net weight 2.7 – 3.0 kg (Battery dependent)
