DWR180Z Cordless Ratchet Wrench

Download HR Image

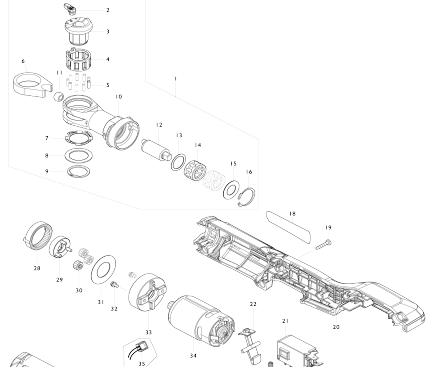

Download Exploded View

PRODUCT DETAILS

• Supplied with two socket adapters for compatibility with a variety of sockets
• Equipped with lock-pin style ratchet mechanism, allowing for use as a pass-through ratchet wrench to tighten 13mm nut onto M8 threaded rod
• Easy-to-grip small diameter grip for more comfort and control
• 47.5 N·m (420 in.lbs.) of maximum torque and 0-800 RPM

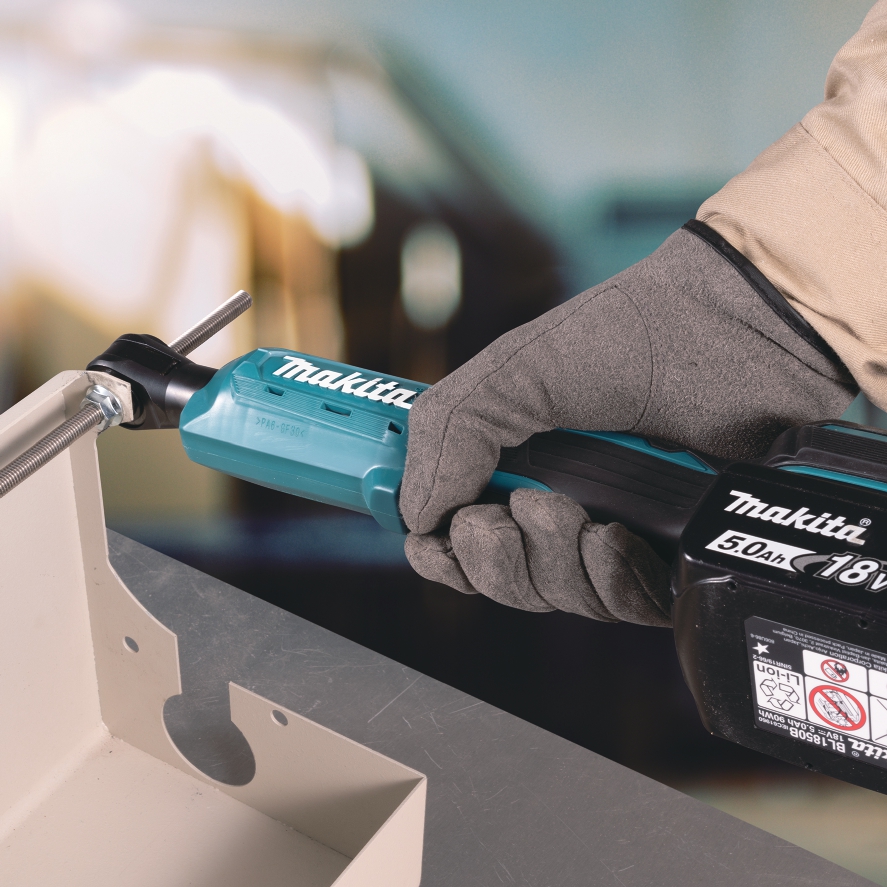

• Fastens nuts on threaded rods
• Can be also used as a hand ratchet wrench
• LED light with preglow and afterglow functions illuminates the work area
• Forward/reverse rotation change
• Electric brake for maximum productivity
• Water-resistance compatible with XPT
• Battery protection circuit protects against overloading, over-discharging and over-heating

Buy From An Authorized Retailer





Max output 330 W
Capacity Standard bolt: M5 – M12 (3/16 – 1/2″)
High strength bolt: M5 – M10 (3/16 – 3/8″)
Square drive 9.5 / 6.35 mm (3/8 / 1/4″)
Max fastening torque 47.5 N·m (420 in.lbs.)
No load speed 0 – 800 minˉ¹
Flats width 13 mm (1/2″)
Angle head size Diameter: 31 mm (1-7/32″)
Height: 25.5 mm (1″)
Vibration level 2.5 m/s²
Vibration K factor 1.5 m/s²
Sound pressure level 74 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) w/o Battery: 350 x 79 x 67 mm (13-3/4 x 3-1/8 x 2-5/8″)
w/ BL1830B / BL1850B / BL1860B: 369 x 79 x 87 mm (14-1/2 x 3-1/8 x 3-7/16″)
Net weight 1.2 – 1.6 kg (2.6 – 3.5 lbs.)
