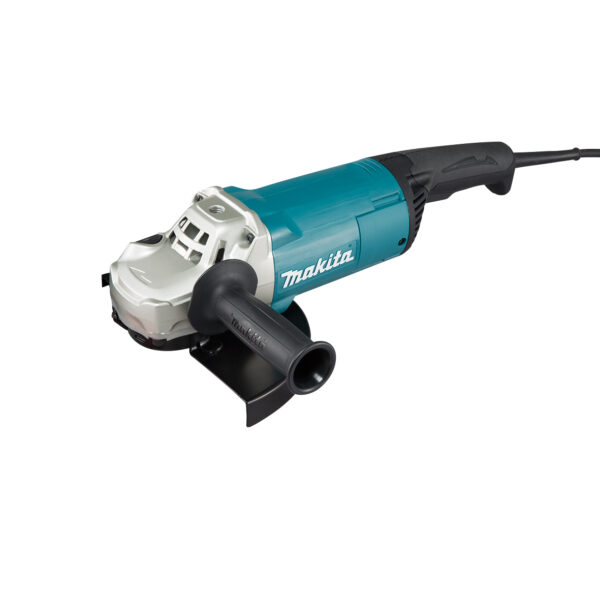

• 230 mm (9″) 2,200 W Angle Grinder
• More durable motor developed for heavy duty applications
• Lightweight compact design at only 450 mm long
• New side handle design for more comfort and control
• Powerful 2,200 W motor delivers 6,600 RPM for the most demanding applications
• Spiral bevel gears for smoother rotation, quieter gear noise and a more efficient transfer of energy
• Three position adjustable side handle
• Large trigger switch for easy operation
• Brushes improved for longer service intervals
| Carbon Brush | 218 |
| Continuous Rating Input | 2,200W |
| Wheel Diameter | 230 mm (9″) |
| Hole Diameter | 22.23 mm (7/8″) |
| No Load Speed | 6,600 min⁻¹ |
| Cup Brush Diameter Capacity | 100 mm (4″) |
| Thread | M14x2.0 |
| Abrasive Grinding Wheel Diameter | 230 mm (9″) |
| Abrasive Cut-off Wheel Diameter | 230 mm (9″) |
| Max Abrasive Wheel Thickness | 6.5 mm (1/4″) |
| Diamond Wheel Diameter | 230 mm (9″) |
| Vibration Level | Surface grinding w/ Normal side grip: 6.5 m/s² Surface grinding w/ Anti-vibration side grip: 6 m/s² Disc sanding w/ Normal side grip: 2.5 m/s² or less Disc sanding w/ Anti-vibration side grip: 2.5 m/s² or less |
| Vibration K Factor | Surface grinding w/ Normal side grip: 1.5 m/s² Surface grinding w/ Anti-vibration side grip: 1.5 m/s² Disc sanding w/ Normal side grip: 1.5 m/s² Disc sanding w/ Anti-vibration side grip: 1.5 m/s² |
| Sound Pressure Level | 91 dB(A) |
| Sound Power Level | 102 dB(A) |
| Noise K Factor | 3 dB(A) |
| Dimensions (L x W x H) | 450 x 250 x 144 mm (17-3/4 x 9-7/8 x 5-5/8″) |
| Net Weight | 5.5 – 7.86 kg (12.1 – 17.3 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Ergonomic tool body fits user’s hand perfectly, providing sure grip and easy handling whether in single or double handed operation. 190W.
Small-circumference housing for easy handling. Lock-off button built in the centre of paddle lever. 400W.
