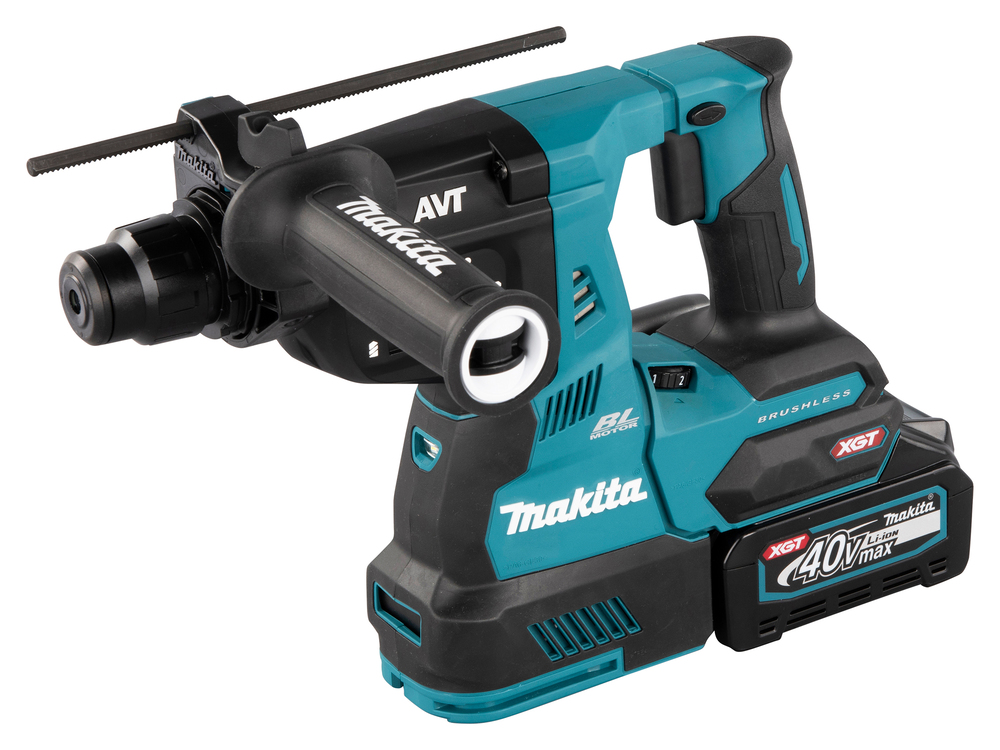

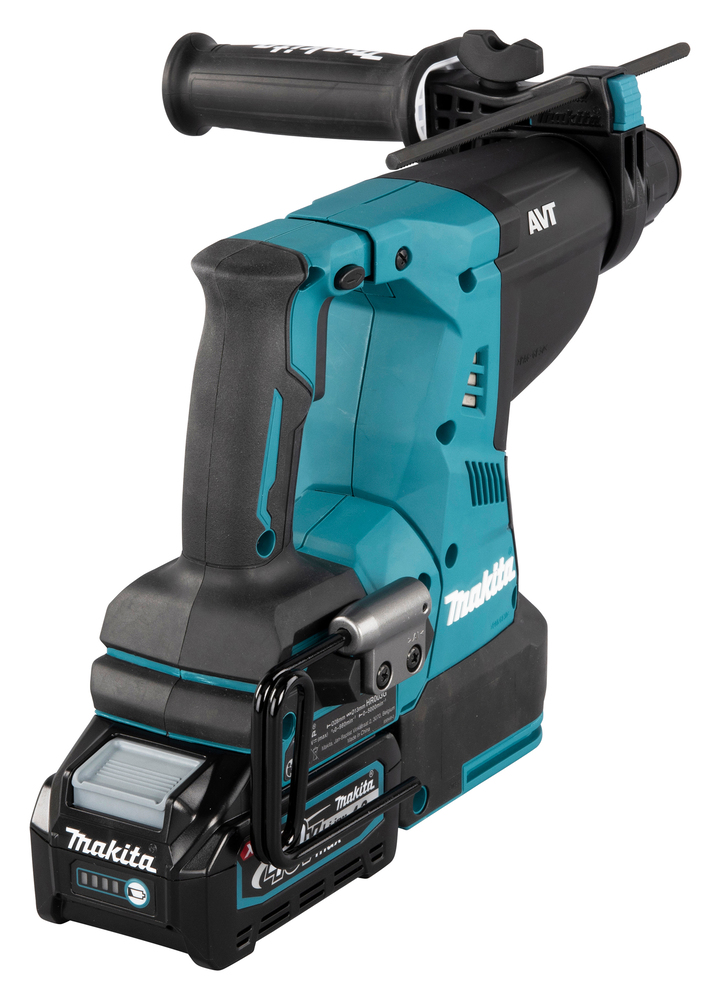

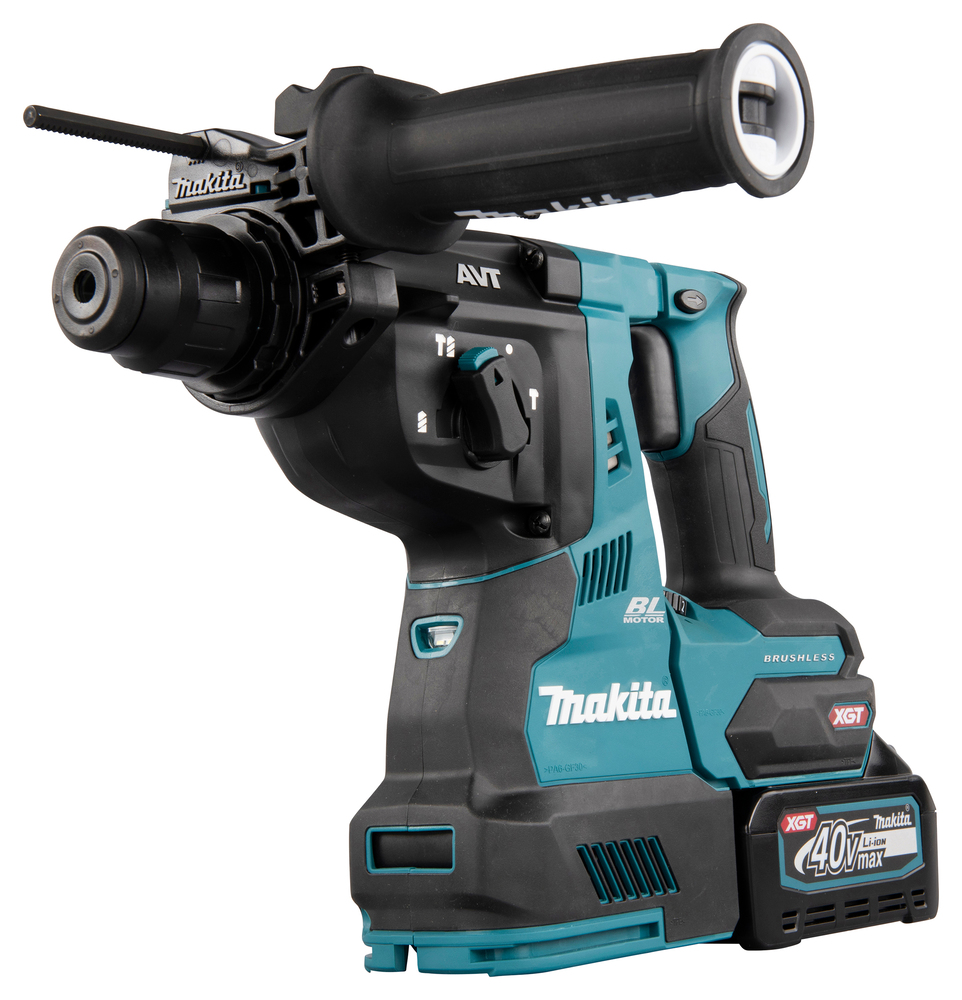

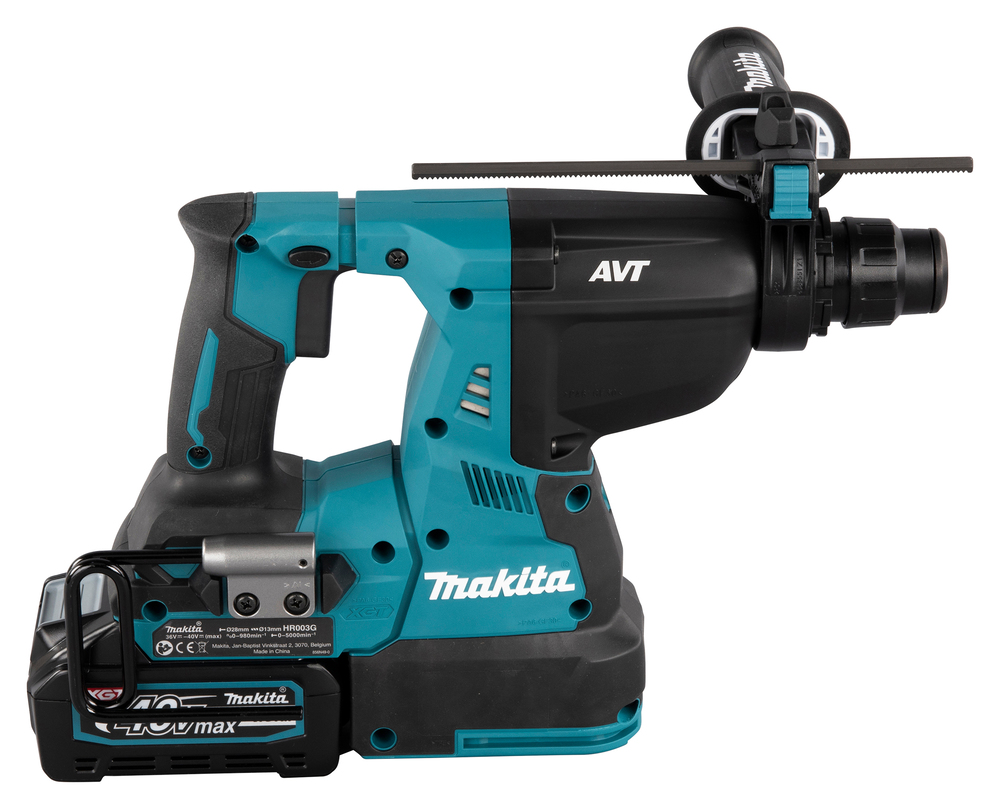

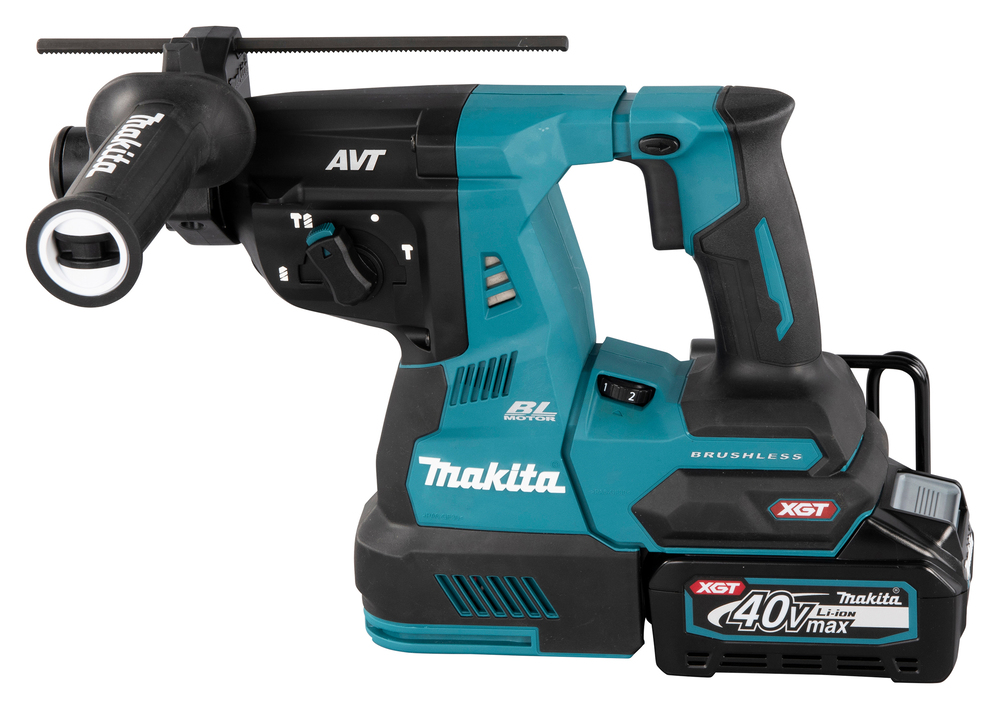

HR003GZ01 40V XGT SDS-Plus Combination Hammer

Home » Products » HR003GZ01 40V XGT SDS-Plus Combination Hammer

HR003GZ01 40V XGT SDS-Plus Combination Hammer - Image 2

HR003GZ01 40V XGT SDS-Plus Combination Hammer - Image 3

HR003GZ01 40V XGT SDS-Plus Combination Hammer - Image 4

HR003GZ01 40V XGT SDS-Plus Combination Hammer - Image 5

HR003GZ01 40V XGT SDS-Plus Combination Hammer - Image 6

HR003GZ01 40V XGT SDS-Plus Combination Hammer - Image 7

Download HR Image

Download Exploded View

PRODUCT DETAILS

The HR003G is a 28mm SDS-Plus combination hammer providing high-efficiency drilling in concrete. It delivers 2.8 Joules of impact energy and features three operation modes: Rotation Only, Hammering with Rotation, and Hammering Only. To ensure comfortable use, it is equipped with Anti-Vibration Technology (AVT), including a counterweight system and vibration-absorbing handle. The AWS Bluetooth system is included for wireless dust extraction, and constant speed control ensures that drilling speed is maintained even under heavy loads.

2.8 Joules of impact energy for fast concrete drilling
AVT (Anti-Vibration Technology) for lower operator fatigue
AWS (Auto-start Wireless System) Bluetooth ready

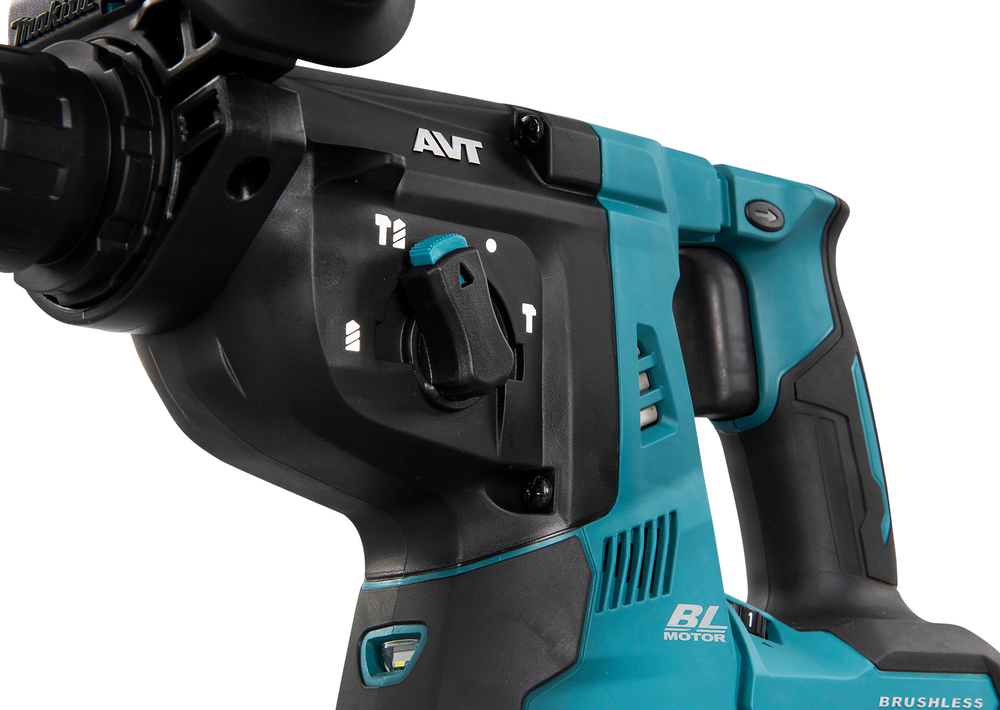

3-mode operation for drilling, hammer drilling, and chiselling
Constant speed control under load
LED job light and soft start
Depth gauge for consistent hole depth

Buy From An Authorized Retailer

Buy From Retailer

Voltage	40V
Impact Energy	2.8 J
Max in Concrete	28 mm
No Load Speed	0 – 980 rpm
Impacts per Minute	0 – 5,000 bpm

RARE EARTH MAGNETS

Rare earth magnets of the highest quality are engineered within the brushless motors to maximize power and performance.

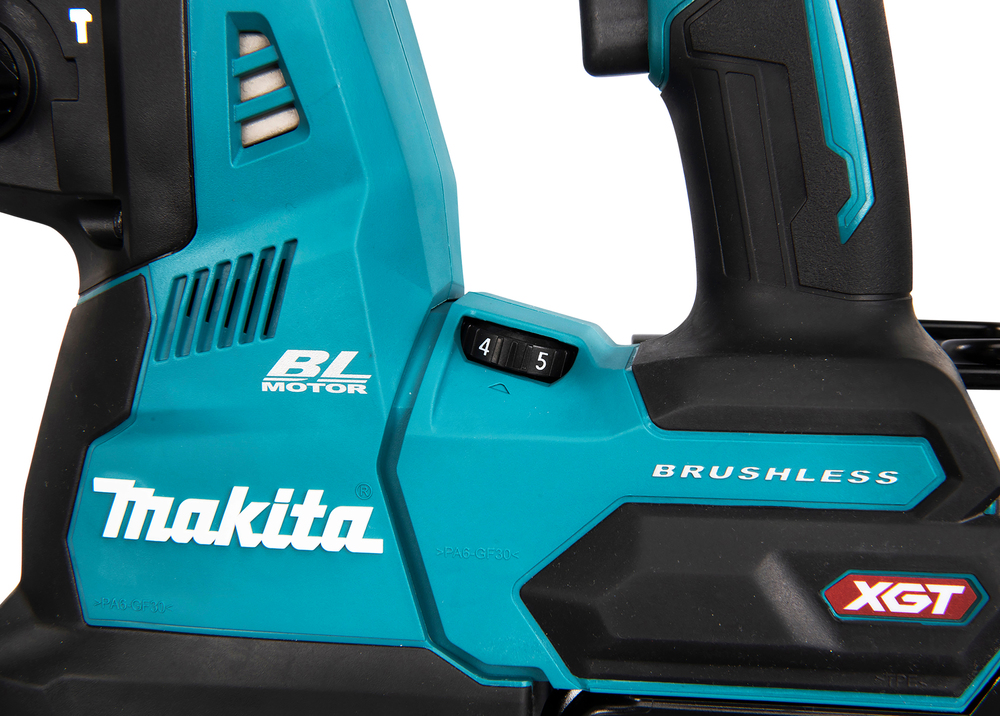

PURE COPPER WIRE

Makita® XGT Products feature purpose-built brushless motors with more copper windings for increased power output.
