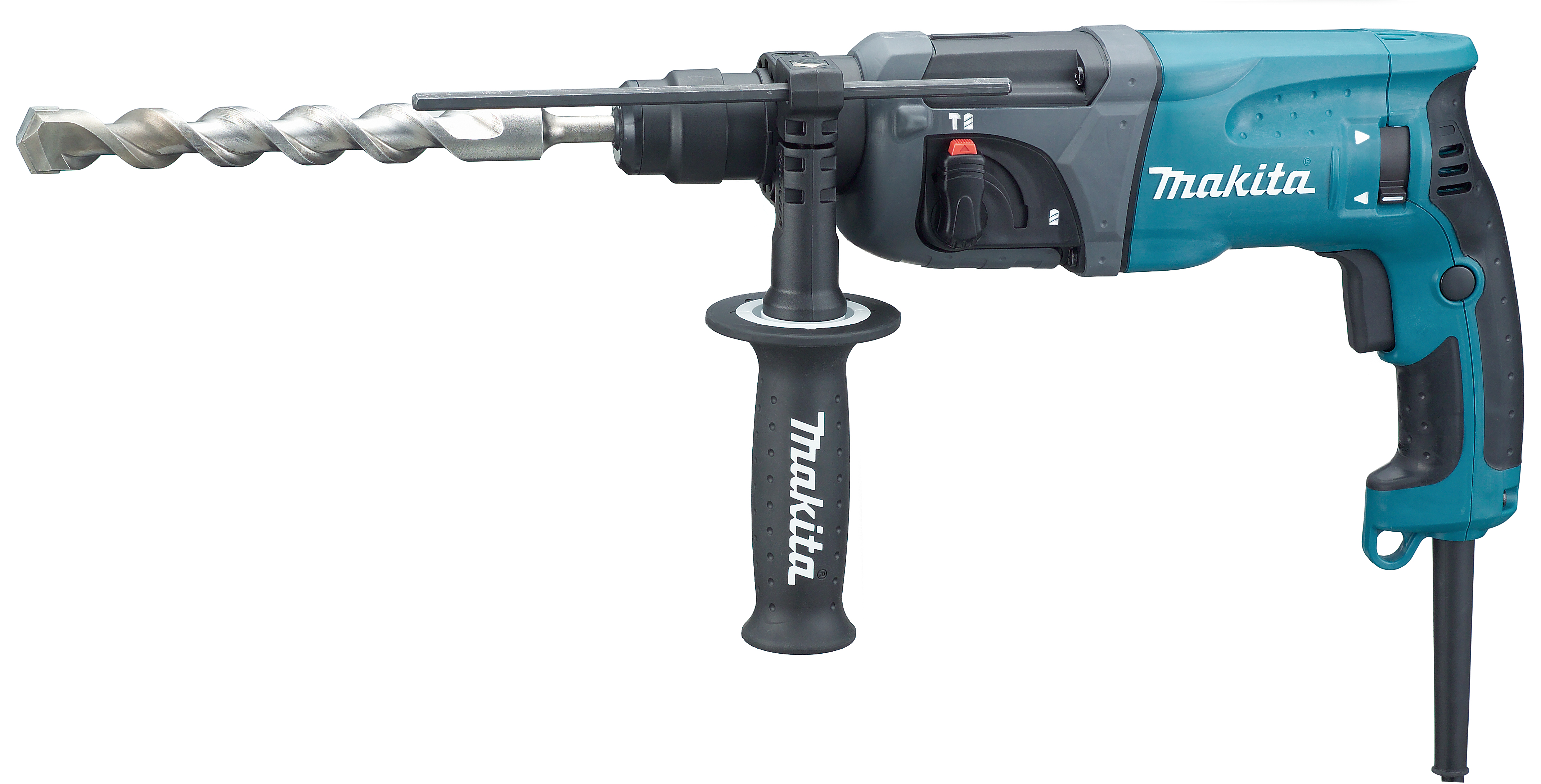

HR2230 Rotary Hammer

HR2230 Rotary Hammer
HR2230 Rotary Hammer - Image 2

Download HR Image

Download Exploded View

PRODUCT DETAILS

  • High durability in mechanical parts, motor and carbon brush.
  • 2 operation modes – hammering with rotation and rotation only.
  • Speed and torque in reverse are the same as forward rotation by using brush holder unit.
  • One-touch sliding chuck enables easy bit change.
  • Ergonomically designed rubberized grip provides more control and comfort.
  • Easy-to-operate large trigger switch and lock-on button.
  • Double Insulation, Variable Speed, Reversing, SDS Plus, Torque Limiter and Carry Case. Tool sold without bit.

Buy From An Authorized Retailer

Buy From Retailer

Continuous rating input 710W
Capacity Concrete: 22mm
Steel: 13mm
Wood: 32mm
Impacts per minute 0 – 4,050
No load speed (r/min) 0 – 1,050r/min
Dimensions (L x W x H) 357 x 84 x 214mm
Net weight / Power supply cord 2.6kg / 2.5m
