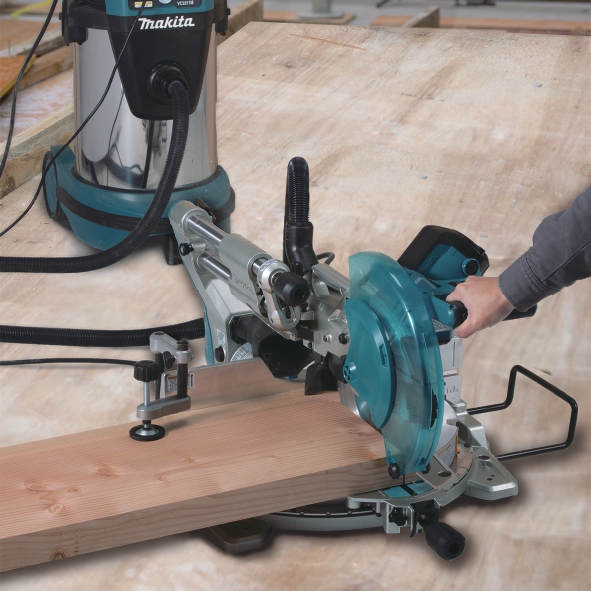

LS1019L Mitre Saw

LS1019L Mitre Saw
LS1019L Mitre Saw - Image 2

Download HR Image

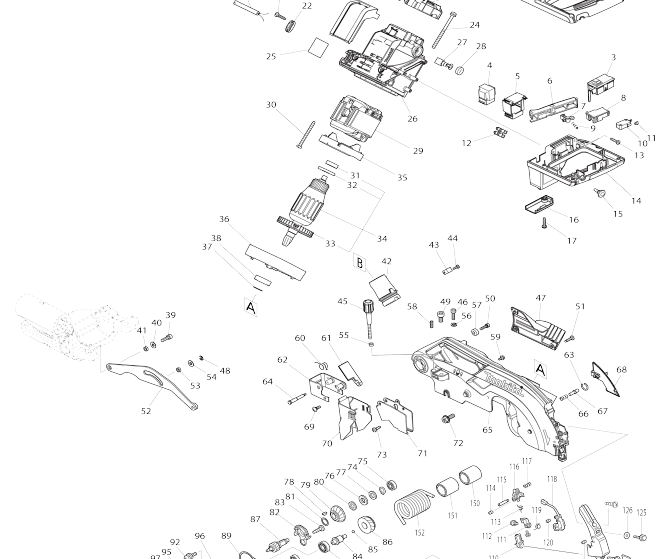

Download Exploded View

PRODUCT DETAIL

  • Large turn base supports workpiece securely for increased stability
  • Rail-forward design enables the machine to be placed against a wall for maximizing work space
  • Single sliding system ensures smooth operation to produce superior cuts
  • Front knob for easy bevel angle adjustment
  • Slide lock for locking the sliding movement of the carriage
  • Holders are fitted on both sides of the tool to hold long workpieces horizontally
  • Capacity for up to 168 mm crown molding (vertically nested), 133 mm baseboard (vertical), and 310 mm crosscuts at 90°
  • Direct drive gearbox and guard system designed for higher vertical cutting capacity (133 mm)
  • Mitres 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)
  • Class II laser enables accurate alignment of blade and cutting line
  • Compact and lightweight
  • Powerful 1,510 W direct drive motor delivers 3,200 RPM
  • 120 mm tall dual sliding fence system features upper and lower fence adjustments for more precise mitre and bevel cuts
  • Ergonomic rubberized horizontal D-handle
  • Soft start feature for smooth start-ups
  • Electronic speed control maintains constant speed under load for smoother, higher quality cutting
  • See-through blade guard system for greater visibility of blade and line of cut
  • Easy one-step blade changes
  • Lock-off (2 stage) safety switch
  • Electric brake for maximum productivity and increased operator safety
  • Incorporates Deep eXact cutting Technology (DXT)
  • On-tool hex wrench for fast and easy blade changes
Buy Now
Carbon Brush 153
Continuous Rating Input 1,510W
Wheel diameter 255 – 260 mm (10 – 10-1/4″)
No load speed 3,200 min⁻¹
Bevel angle Left: 48° / Right: 48°
Miter angle Left: 60° / Right: 60°
Max cutting capacity 0° Miter: 68 x 310 mm (2-11/16 x 12-1/4″)
45° Miter L/R: 91 x 197 mm (3-5/8 x 7-3/4″)
Crown molding vertically nested: 168 mm (6-5/8″)
Crown molding lying flat: 248 mm (9-3/4″)
Base board against fence: 133 mm (5-1/4″)
Base board lying flat: 305 mm (12″)
Max cutting capacity
(Bevel 45°L / Miter 0°)		 42, 58 x 310, 279
Max cutting capacity
(Bevel 45°L / Miter 45°LR)		 42, 58 x 218, 197
Max cutting capacity
(Bevel 45°R / Miter 45°LR)		 29, 43 x 215, 197
Max cutting capacity
(Bevel 45°R / Miter 0°)		 29, 43 x 305, 279
Max cutting capacity
(Bevel 0° / Miter 60°LR)		 68, 91 x 155, 139
Sound pressure level 91 dB(A)
Sound power level 101 dB(A)
Noise K factor 3 dB(A)
Vibration level 2.5 m/s² or less
Vibration K factor 1.5 m/s²
Dimensions (L x W x H) 805 x 644 x 660 mm (31-3/4 x 25-3/8 x 26″)
Net weight 26.3 kg (57.9 lbs.)
Power supply cord 2.5 m (8.2 ft)
