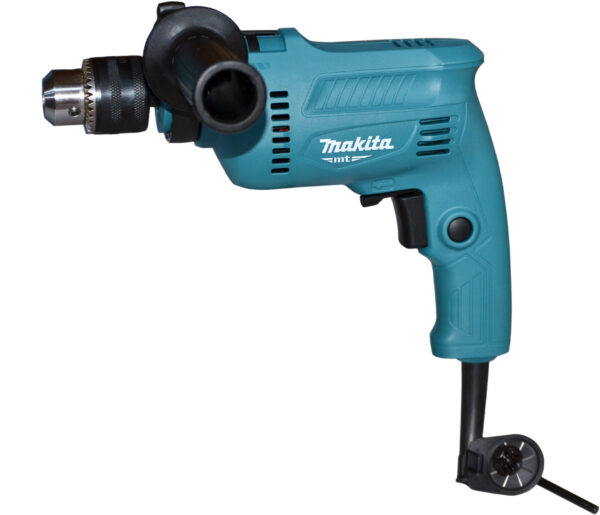

M0801B Impact Drill

Download HR Image

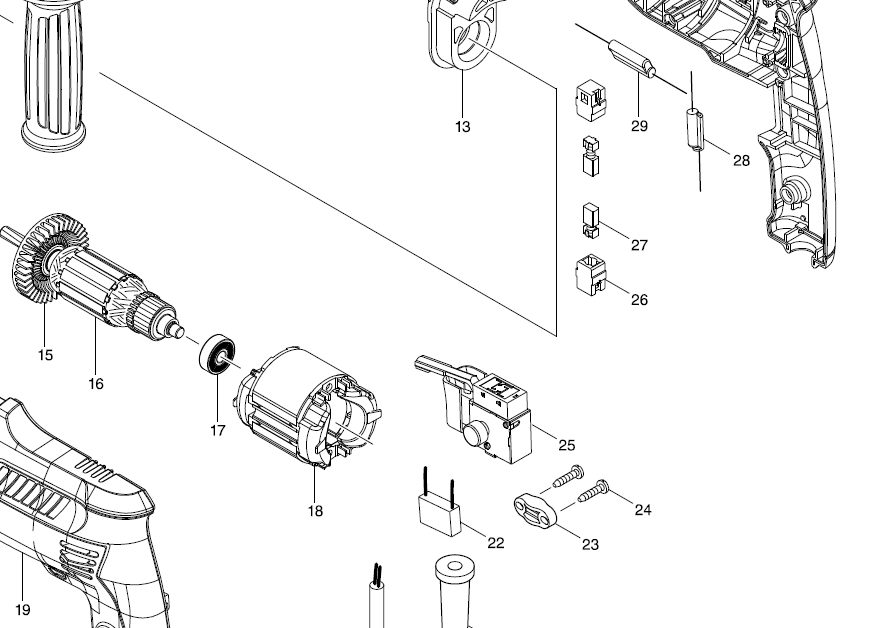

Download Exploded View

PRODUCT DETAIL

  • 0-3,200 RPM & 0-48,000 BPM
  • Recessed lock-on button for continuous use
  • Reverse switch is conveniently located
  • 360° swivel side handle
  • 2-mode operation for “Rotation Only” or “Hammering with Rotation”
  • Double insulated
Carbon Brush 85
Continuous Rating Input 500W
Blows per minute 0 – 48,000 min⁻¹
No load speed 0 – 3,200 min⁻¹
Capacity Concrete: 16 mm
Masonry: 16 mm
Steel: 13 mm
Wood: 20 mm
Chuck capacity 1.5 – 13 mm
Vibration level Hammer drilling into concrete: 14.5 m/s²
Drilling into metal: 4 m/s²
Vibration K factor Drilling into metal: 1.5 m/s²
Sound pressure level 94 dB(A)
Sound power level 105 dB(A)
Noise K factor 3 dB(A)
Dimensions (L x W x H) 261 x 69 x 195 mm
Net weight 1.7 kg
Power supply cord 2.0 m
