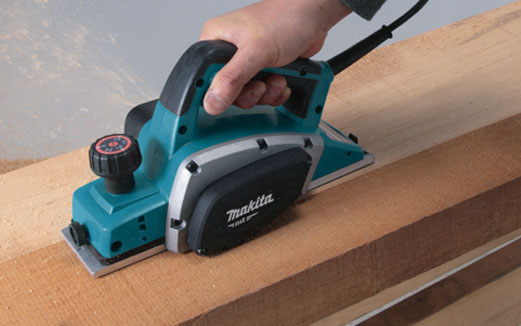

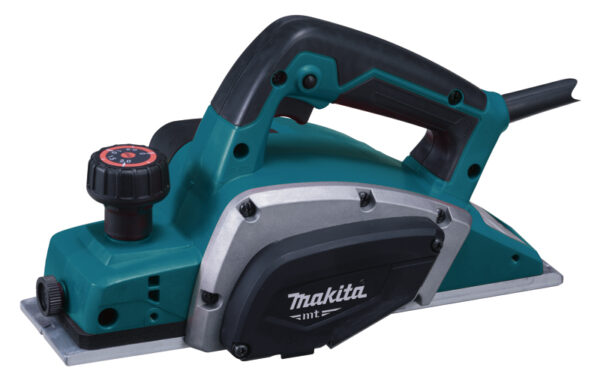

M1901B Power Planer

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • 82 mm 500W Planer
  • Ergonomically designed soft grip
  • Planes up to 82 mm wide and 2 mm deep in a single pass
  • Two-blade cutter head with 16,000 RPM delivers a smooth finish
  • Base plate foot protects workpiece and blades
  • V-groove on base for easy chamfer cutting
  • Compact design at only 285 mm long
  • Large, conveniently located depth setting knob for easy adjustment
  • Aluminium diecast bracket
  • Double insulated
Carbon Brush 411
Continuous Rating Input 500W
Planing width 82 mm
Planing depth 2 mm
No load speed 16,000 min⁻¹
Vibration level Planing softwood: 3.5 m/s²
Vibration K factor Planing softwood: 1.5 m/s²
Sound pressure level 85 dB(A)
Sound power level 96 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 285 × 157 × 160 mm
Net weight 2.8 – 2.9 kg
Power supply cord 2.0 m
