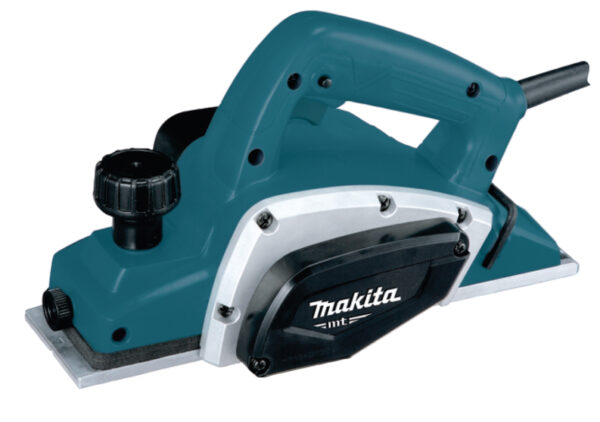

M1902B Power Planer

Download HR Image

Download Exploded View

PRODUCT DETAIL

• 82 mm 500W Planer
• Sharp line on grip and sharp-cut design housing
• Ergonomically designed handle
• Planes up to 82 mm wide and 1 mm deep in a single pass
• Two-blade cutter head with 16,000 RPM delivers smooth finish and fast stock removal
• Base plate foot protects workpiece and blades from scratches and damages
• V-groove on base for easy chamfer cutting
• Compact design at only 285 mm long
• Large, conveniently located depth setting knob for easy adjustment
• Aluminium diecast bracket
• Double insulated

Carbon Brush 411
Continuous Rating Input 500W
Planing Width 82 mm
Planing Depth 1 mm
No load speed 16,000 min⁻¹
Vibration level Planing softwood: 3 m/s²
Vibration K factor Planing softwood: 1.5 m/s²
Sound pressure level 84 dB(A)
Sound power level 95 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 285 × 157 × 160 mm
Net weight 2.6 – 2.7 kg
Power supply cord 2.0 m
