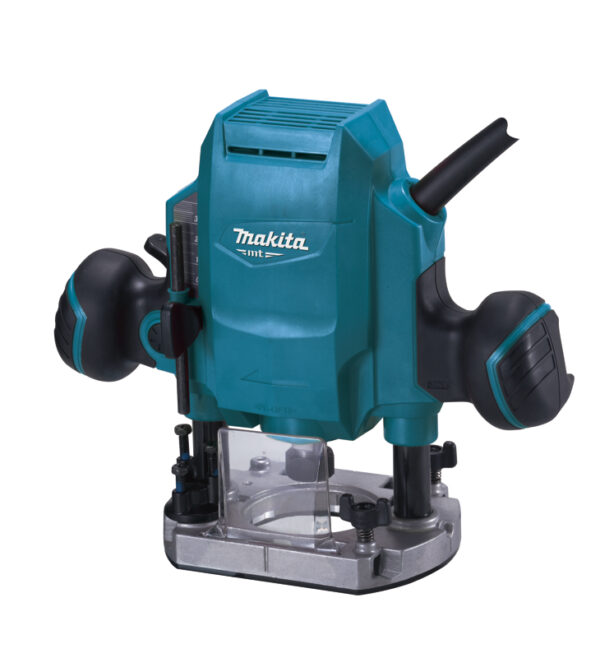

M3601B Router

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • 900W motor delivers 27,000RPM
  • 0 – 35mm plunge depth capacity
  • Plunge depth adjustment lever with 3 pre-set depth stops
  • Conveniently located plunge lock lever
  • Easy-to-read depth scales
  • Rubberized contoured handles with built-in switch
  • Chip deflector designed to direct chips away from operator
  • Straight guide for effective straight cuts when chamfering or grooving
  • Double insulated
Carbon Brush 106
Continuous Rating Input 900W
Collet size 6 / 8 mm
Base inner 64 mm
No load speed 27,000 min⁻¹
Plunge capacity 0 – 35 mm
Vibration level Cutting grooves in MDF: 7.5 m/s²
Vibration K factor Cutting grooves in MDF: 1.5 m/s²
Sound pressure level 91 dB(A)
Sound power level 102 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 256 × 110 × 218 mm
Net weight 2.7 kg
Power supply cord 2.0 m
