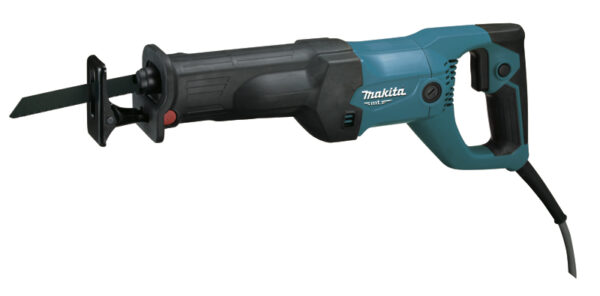

M4501KB Recipro Saw

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • Variable speed trigger for precise cutting
  • Toolless blade change system enables fast, one-handed blade changes
  • Toolless shoe adjustment allows operator to quickly adjust shoe position
  • Long 28mm stroke for faster cutting
  • Built-in dust blower clears the line of cut for better accuracy
  • Large 2-finger trigger with lock-on button
  • Soft grip provides increased comfort
  • Double insulated
Carbon Brush 303
Continuous Rating Input 1,010W
Stroke length 28 mm
Strokes per minute 0 – 2,800 min⁻¹
Capacity Pipe: 130 mm
Wood: 255 mm
Vibration level Cutting boards: 19.5 m/s²
Cutting wooden beams: 22 m/s²
Vibration K factor Cutting boards: 1.5 m/s²
Cutting wooden beams: 2 m/s²
Sound pressure level 87 dB(A)
Sound power level 98 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 457 × 98 × 170 mm
Shank type Saw blade: Recipro
Net weight 3.2 kg
Power supply cord 2.0 m
