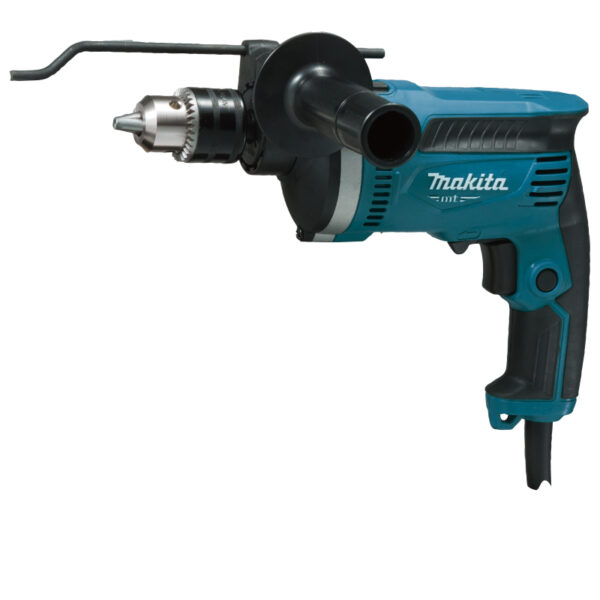

M8100B Impact Drill

Download HR Image

Download Exploded View

PRODUCT DETAIL

  • “Hammering with Rotation” or “Rotation Only”
  • 0-3,200 RPM & 0-48,000 IPM
  • Variable speed trigger
  • Conveniently-located 2-mode switch allows for fast mode
  • Large trigger switch and 360° swivel side grip
  • Ergonomic rubberized grip
  • In-line positive grip design maximises power thrust
  • Compact and lightweight
  • Recessed lock-on button
  • Reverse switch
  • Double insulated
Carbon Brush 85
Continuous Rating Input 710W
Blows per minute 0 – 48,000 min⁻¹
No load speed 0 – 3,200 min⁻¹
Capacity Concrete: 16 mm
Masonry: 16 mm
Steel: 13 mm
Wood: 30 mm
Chuck capacity 1.5 – 13 mm
Vibration level Hammer drilling into concrete: 16.5 m/s²
Drilling into metal: 3 m/s²
Vibration K factor Drilling into metal: 1.5 m/s²
Sound pressure level 98 dB(A)
Sound power level 109 dB(A)
Noise K factor 3 dB(A)
Dimensions (L × W × H) 296 × 77 × 202 mm (11-5/8 × 3 × 8″)
Net weight 2.1 kg
Power supply cord 2.0 m
