JR3061T Recipro Saw

Download HR Image

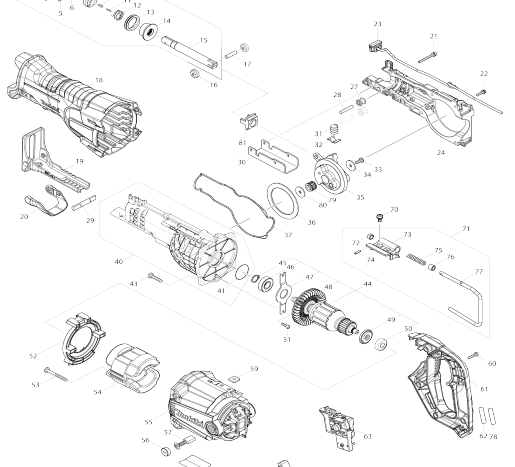

Download Exploded View

PRODUCT DETAILS

  • LED job light illuminates the work area
  • Retractable rafter hook allows to hang the machine on ladder rungs or guard rails of aerial work platform
  • Variable speed trigger for precise cutting in a wide variety of applications
  • Toolless blade change system enables fast, one-handed blade changes
  • Toolless shoe adjustment allows operator to quickly adjust shoe position
  • Long 32 mm stroke for faster cutting
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Double insulated

Buy From An Authorized Retailer

Carbon Brush 303
Continuous Rating Input 1,250W
Stroke length 32 mm (1-1/4″)
Strokes per minute 0 – 3,000 min⁻¹
Capacity Pipe: 130 mm (5-1/8″)
Wood: 255 mm (10″)
Vibration level Cutting boards: 18.5 m/s²
Cutting wooden beams: 16.5 m/s²
Vibration K factor Cutting boards: 1.5 m/s²
Cutting wooden beams: 2 m/s²
Sound pressure level 88 dB(A)
Sound power level 99 dB(A)
Noise K factor 3 dB(A)
Dimensions (L x W x H) 487 x 95 x 177 mm (19-3/16 x 3-3/4 x 7″)
Shank type Saw blade: Recipro
Net weight 3.8 kg (8.4 lbs.)
Power supply cord 2.5 m (8.2 ft)
